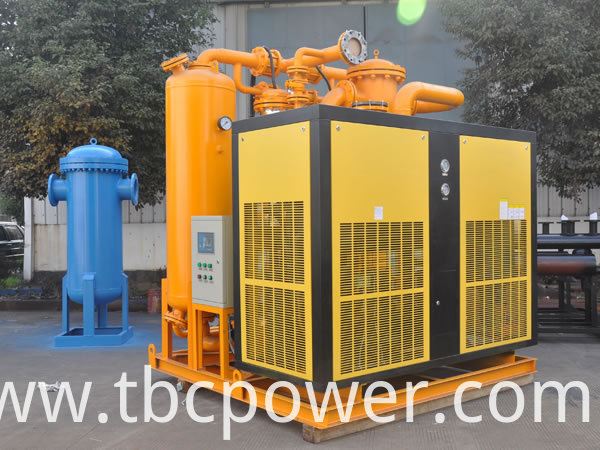

Combination Dryer

Model NO.: ZDA(W) -108, ZDA(W) -145, ZDA(W) -165... Usage: Industry Dehumidifier Type: Cooling Trademark: SUCCESS ENGINE Origin: China Type: Floor Standing Humidifier Type: Vaporizer / Warm Mist Humidity Control: Automatic Specification: ISO9001 HS Code: 84193990 The high-temperature,high-humidity air from the compressor firstly exchanges heat in the precooler with the cold air from the evaporator for cooling and dehumidification. Then, the air enters the evaporator to exchange heat with the refrigerant. After this exchange, the air temperature is reduced to 2-10. Then, after the processing in the air-water separator, a large number of condensed water is discharged and dry air is abtainted.


The air coming from the gas-water separator enters the precooler to exchange heat with the hot and humid air from the compressor. The compressed air from the clooking until enters the efficient degreaser from oil removal. It then enters the Desiccant Dryer fro water adsorption. Then, the compressed air with untra-low dew point is abtained. After filtered, it is drectly supplied to air comsuming equipment.
In a limited space, our combined air dryers provide the chleanest compressed air with minimum air consumption.

Parameter	Capacity	Compressor  Power	Input  Power	Cooling Water		Inlet/Outlet	Weight	L	W	H
Model	(Nm3/min)	(HP)	(kw)	Flow	Connect.	DN	(kg)	(mm)	(mm)	(mm)
ZDA/W-108	10.8	3HP	3.15	1.2	G 1/2"	DN50	680	1400	1200	2100
ZDA/W-145	14.5	3.5HP	3.3	1.5	G 1/2"	DN50	800	1400	1200	2100
ZDA/W-165	16.5	4HP	3.4	1.8	G 1"	DN65	920	1500	1400	2300
ZDA/W-195	19.5	5HP	4.9	3.2	G 1"	DN65	1000	1500	1500	2300
ZDA/W-225	22.5	5HP	4.9	3.2	G 1"	DN65	1000	1500	1500	2300
ZDA/W-285	28.5	5.75HP	5.3	3.5	G 1"	DN80	1150	1800	1800	2100
ZDA/W-360	36	6HP	6.4	3.7	G 1"	DN80	1380	1800	1800	2100
ZDA/W-430	43	7HP	7.2	4.8	G1 -1/2"	DN100	1800	2000	2000	2350
ZDA/W-520	52	10HP	8.2	6.2	G1 -1/2"	DN125	2250	2060	2100	2520
ZDA/W-630	63	12HP	9.5	7.8	G 2"	DN125	2520	2060	2100	2520
ZDA/W-700	70	12HP	10.1	7.8	G 2"	DN125	2800	2060	2100	2520
ZDA/W-800	80	16HP	12	10	G 2"	DN125	3200	2800	3000	2800
ZDA/W-900	90	18HP	13.5	12	G 2"	DN125	4000	2800	3100	2900
ZDA/W-1000	100	20HP	15	12.5	G 3"	DN150	4950	2800	3100	2900

Contact us if you need more details on Refrigeration Air Dryer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Air Dryer、Compressed Air Dryer. If these products fail to match your need, please contact us and we would like to provide relevant information.
