Automatic high efficiency Spray Painting Machine

  • Automatic high efficiency Spray Painting Machine
  • Automatic high efficiency Spray Painting Machine
  • Automatic high efficiency Spray Painting Machine
  • Automatic high efficiency Spray Painting Machine

Automatic high efficiency Spray Painting Machine

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB,CIF,EXW,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: wood packing
    Productivity: 600
    Brand: HENGYIJIA
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 50
    Certificate: CE ISO
    Port: Shenzhen

Basic Info

Model No.: HYJ-A-0134

Product Description


Automatic high efficiency Spray Painting Machine


Specification

Setting Information
Painting
Low Cost High Production Semi Automatic painting machine
rated voltage
110v/220V/380v/415v
material
7m
color
custpmized colors
installation
Customer workshop
temperature
20-220c
Booth high
2500mm
Material
Stainless steel
Product Description

Product Details

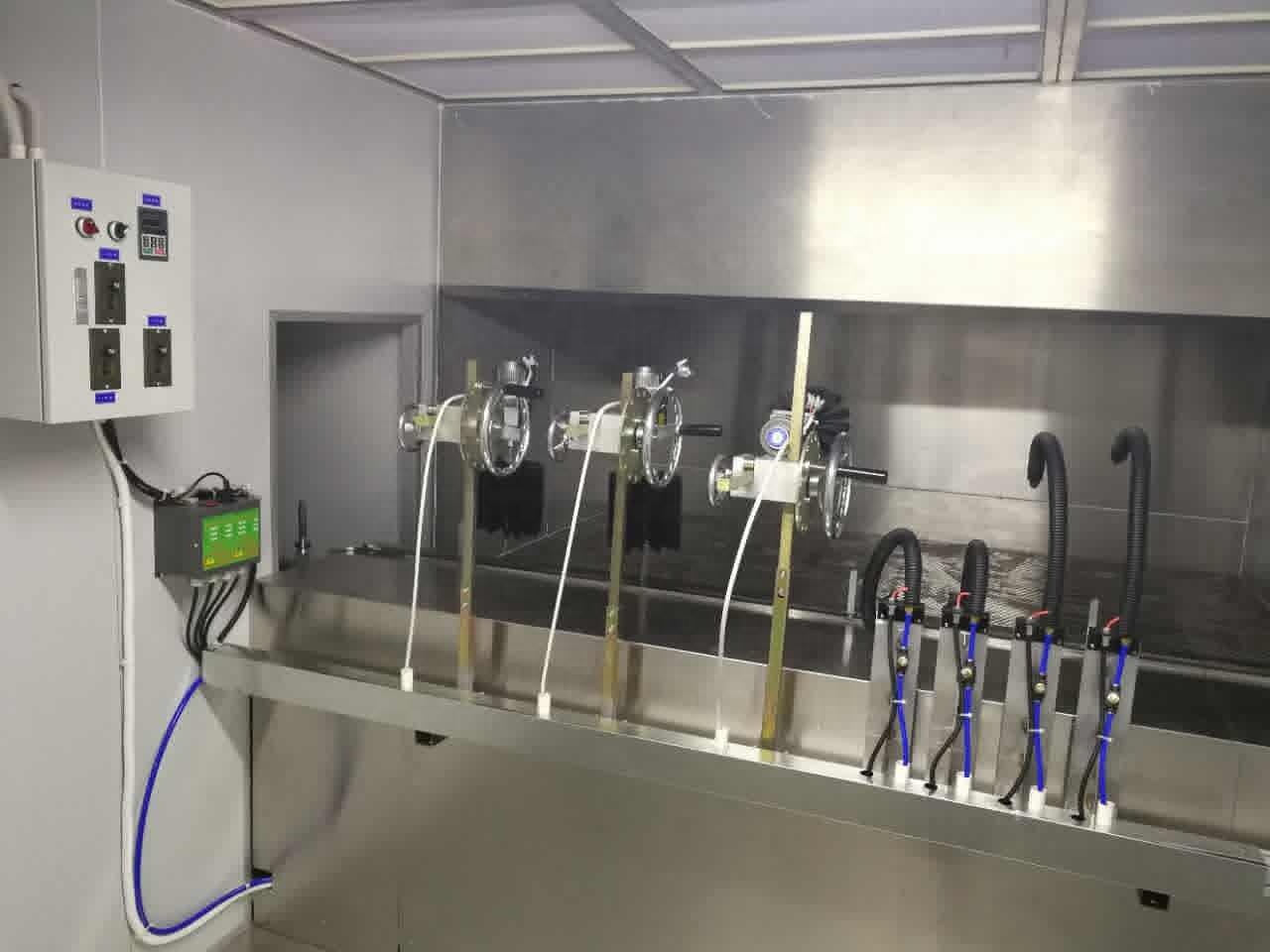

Low Cost High Production Semi Automatic painting machine

The automatic plastic painting machine made by Stainless steel,Size is 2.4m/3.0m/4.2m length,the wide is 2.4m/2.6m,the high is 2.2m.the water curtain plate is SS304. According to client requirment install automatic spray guns.

Product Details

Automatic painting pump

The painting pump made in Taiwan China.Our company has cooperated with Taiwan pump distributors for a long time and the quality is stable. After using the pump for many years in Taiwan, there is no customer feedback quality problem and it is not easy to block. An intake pipe, a return pipe, a constant pressure pump, a joint of multiple paint blocks,

Product Details

Original WA-101 guns,Our factory provide our clients original WA-101 price is cheaper.

The WA-101 automatic spray gun is a well-known brand. All customers of our company are using it. The genuine WA-101 Iwata spray gun has the effect of saving paint and atomizing effect. The surface of the sprayed product is even.

Automatic spray painting machine and Automatic UV spray coating line

The UV curing oven can adjust the light energy to three grades: high, medium and low. The position of the uv lamp can be adjusted. There is an exhaust system in the uv furnace, which can extract the heat generated by the uv lamp at any time.

Spray painting machine operation and commissioning
Since all the parameters of this series of products will be set according to the customer's requirements before leaving the factory, in the production debugging, just follow the following
order. 1:Preparation before operation: First move the machine to the spraying work area in front of the water curtain cabinet, adjust the position, press the caster brake to fix the machine, adjust the paint, and then connect the power supply (220V with grounding wire), air source (air pressure) 6kg/m2). Open the Air Compressor in turn, the water supply to the water tank, the exhaust system, the water curtain pump
2 : Operating
1:Turn on the power switch, turn on the auto-rotation and reciprocating electronic speed switch, reset the emergency stop switch.
First use the thinner agent to adjust the volume of the spray gun , adjust the air pressure, pull the handle of the pressure regulating valve outward, and then rotate the air pressure to adjust the pressure to reach the demand pressure (spray gun, the standard air pressure is 2.5kg/m2---3.5kg/m2), turn on the spray gun switch, and then start the independent knob switch of 1-8 bit (or the required spray gun switch) to ensure that each spray gun can be oiled
normally. 3:Discharge the thinner in the tubing and replace it with the required paint. 4:take 1 to 2 pieces of product for spray testing , install it on the fixture to the spray gun spray area, then adjust the atomization size of the spray gun and the angle of the spray gun. Distance, then start spraying, adjust the rotation and Reciprocating speed, repeated test
spraying, the sprayed product to be sprayed can be sprayed
5:After spraying, clean the inside of the gun and the inlet pipe with thinner
Common troubleshooting and repair 1
DELIVERY


Applications

Company information







FAQ

Q1. Can I have a sample order for plastic painting machine?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 7 days, mass production time needs 2-3 weeks for order quantity more than

Q3. Do you have any MOQ limit for coating machine order?


A: Low MOQ, 1set for sample checking is available



ABOUT OUR COMPANY


Shenzhen Heng Yi Jia Technology Co., Ltd. manufacturing small automatic painting machine.Small automati c painting m

achine series is my company independent research and development of a new generation of automatic painting equipment, with excellent cost-effective and excellent performance, to meet the needs of different customers and products spraying.This manual provides instructions and guidance for user modeling, installation, parameter setting, field commissioning, troubleshooting and routine maintenance and maintenance. For the use of this series, please read this manual carefully beforehand. For users who use this product for the first time, please read this manual carefully.


If you have any questions about the function and performance of the equipment, please consult our technical service personnel for assistance and use the product properly.Due to the continuous improvement of the product, the information provided by the Company is subject to change without notice!


Customer services


Technical Parameters
Product name
Technical Parameters
Model
P-18-0409010
Appearance
W 2200 * D 950 * H 1400 (mm)
W 2500 * D 950 * H 1400 (mm)
W 3000 * D 950 * H 1400 (mm)
W 3500 * D 950 * H 1400 (mm)
W 4000 * D 950 * H 1400 (mm)
W 4500 * D 950 * H 1400 (mm)
Machine weight
500kg
Max Length
400mm
Max Width
400mm
MAX PROCESS
THICKNESS
0mm-50mm
Spray gun nozzle
1.3/mm
Geared Motor
400 W / 200 W
Air pressure
2.5mpa-4.0mpa
Types of paint
PE\PC\PU\UC\XU\UV\Water based paint
Power
220V 50HZ

Daily maintenance

The daily maintenanceof the equipment is directly related to its service life, so the user must do the corresponding work in the daily production.

1: Clean the inlet paint tube and spray gun after end of spraying work.

2: After the end of the spray must immediately clean up the machine inside the debris (workpieces, fixture, UV paint ) and garbage.

3: regularly check the operation of the system, found that the problem should be resolved in a timely manner. 4: If you do not use it for a long time, please clean the machine and clean it in a ventilated and stock in drying place.

Common trouble shooting and repair 2


Problem
Caused reason
solutions
Fixture to the rotation area without turning
1.friction triangle is too slippery
2.Is it appropriate for the
self-rotating plate and spindle distance
1.forbidden to add lubricant to the belt
2. adjust the turntable and fixture gap
The fixture runs up in the rotation area
1. Is the self-rotating plate small pulley balanced
2. whether the rule is tilted
1 adjust the small pulley or replace
2. Chain pins are not needed to be replaced
Chain sound
1.whether the sprocket level
2. Whether the sprocket and chain are in the correct position
3.There are something in the chain.
1.Adjust the sprocket with the chain at the
same horizontal position
2. Adjust the sprocket with the chain at the same horizontal position
3. clean up,
The fixture rings in the rotation area
1. Rotation of the small wheel group is horizontal
2.whether the rotation of the small wheel group is damaged
3. Is the position of the turntable correct?
1. Adjust the small wheel group
2. Replace the small wheel group bearings
3. Adjust the turntable


Shenzhen Heng Yi Jia Technology Co., Ltd.



Our History

Shenzhen Heng Yi Jia Technology Co., Ltd. has focused on paint spraying equipment for over20 years in China. We started as a small operation, but now have become one of the leading painting line suppliers in the coating industry in China.


Today,Shenzhen Heng Yi Jia Technology Co., Ltd. has been one of the top producers of quality automatic spraying line and new technologies, such as: automatic paint spraying line, UV paint spraying line(uv lines), spray chrome line, mini auto painting line, spray chrome equipment and accessories of coating equipment of vacuum metallizing machine(metallizer), Automatic UV plating vacuum line, spray booth, coating chain, UV curing oven, automatic spray chrome equipment&line, spray powder coating line & equipment and so on.


Our factory

Shenzhen Heng Yi Jia Technology Co., Ltd. is located in the China The beautiful coastal city-Shenzhen. As a global supplier in auo paint spraying line, UV paint spraying line, mini auto painting line, spray chrome line, spray chrome equipment and accessories of coating equipment. Heng Yi Coating Technology is to create added value for customers around the world.

Our product

Our products includes the following:

1, Automatic paint spraying line

2, UV paint spraying line

3, Mini automatic paint spraying machine

4,small automatic spray coating machine

5.UV spray coating line

6. automatic spray painting line

7.Industrial tunnel oven

8.Fixed oven

9.UV curing machine

We supply coating products all over the globe to a wide range of companies worldwide, ranging from large multinational organizations to small individual companies.

Product Application:

Spray painting plant for Industry use are widely used in the following industry, such aspackage coating plant:

--- Glass packages coating for cosmetics, perfume, wine, caps, bottles and other parts

---Painting plant for product paint surface finishing

---Vacuum coating plant

Spray chrome equipment with formula which from our second production line, are widely used for cmetallzing oating, and vacuum coating machine etc.


Our certificate:

We always feel that all success of our company is directly related to the quality of the products we offer. They meet the highest quality requirements as stipulated in ISO9001, ISO14000:14001 quality control system, CE certificate, etc.


Production equipment

We are capable of mixing and producing an paint spraying line, UV lines and offer some of the most advanced manufacturing capabilities available, including vacuum coating machine, mini paint spray machine and spray chrome machine etc.

Production market:

We have customers from both domestic market and oversea market.Heng Yi Jia Technology Sales managers can speak fluent English for good communication. Our main sales market:

China : 50%

USA: 10%

Spain:5%

Thailand:3%

Singapore:2%

India: 20%

Our service for coating equipment.

Besides our existing molded spray painting line, auto paint spray line, uv paint line, mini paint spray line, spray chrome machine, also can produce other coating line according to the drawings from our customers. We control the product quality critically for every step during the manufacturing from custom coating equipment. We offer technical support that is second to none. installation at local.
