Desiccant Dryer

Basic Info

Model No.:  DH-12, DH-26, DH-36, DH-55, DH-69...

Product Description

Model NO.: DH-12, DH-26, DH-36, DH-55, DH-69... Usage: Industry Dehumidifier Type: Cooling Specification: ISO9001 HS Code: 84193990 Type: Floor Standing Humidifier Type: Vaporizer / Warm Mist Trademark: SUCCESS ENGINE Origin: China Air Dryer

The compressed air contains about 100% relative humidity water vapor, as the water vapor cooled down in pipe, they condensate into water. The water in air compressor system will cause many of disadvantages, such as increased the cost of operating and maintenance, investment grow on production line and affect the compressed air quality, the role of air dryer is in the compressed air forced cooling to the required dew point, which make water vapor condenses into droplet, and discharged by water drainage.


Model Interpretation

Example: DA-55,DH-55
"DA" means refrigeration air dryer; "DH" means heatless regeneration air dryer
"55" means processing capacity is 5.5 M3/min(cubic meter/minute)

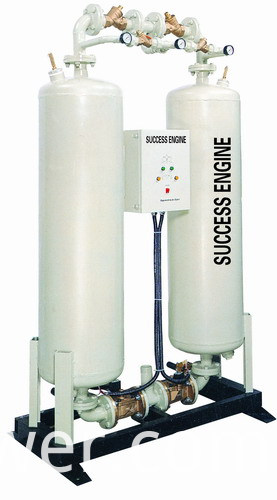

DH Series Heatless Regeneration Air Dyer
  Desiccant Dryer

Work Conditions and Features
Inlet Temperature: Standard ≤40ºC
Work Pressure: Standard 7bar(≤10bar)
Cooling Mode: Air cooling
Inlet Pressure: 0.6-1.0Mpa
Pressure Loss ≤0.02Mpa
Dew Point: ≤- 40ºC
Regeneration Type: Heatless
Regeneration air consumption: ≤15%

Model

Capacity
m 3 /min
Dimensions
mm
Weight
Kg
Outlet connection

DH-12 1.2 780×500×1600 110 G 1
DH-26 2.6 960×500×1880 150 G 1
DH-36 3.6 960×500×2080 160 G 1
DH-55 5.5 1000×500×1920 220 G 1 1/2
DH-69 6.9 1070×500×1860 350 G 1 1/2
DH-85 8.5 1230×600×1820 430 G 2
DH-110 11 1230×600×2040 460 G 2
DH-135 13.5 1230×600×2240 520 G 2
DH-170 17 1600×600×2400 720 DN 65
DH-220 22 1700×700×2250 890 DN 65
DH-270 27 1700×700×2550 950 DN 80
DH-320 32 1900×750×2640 1320 DN 80
DH-450 45 2100×900×2660 1550 DN 100
DH-550 55 2200×950×2710 1880 DN 100
DH-650 65 2300×1000×2810 2250 DN 100
DH-850 85 2500×1100×2910 2810 DN 125
DH-1100 110 3000×1600×3225 4150 DN 150
DH-1400 140 3000×1700×3225 4980 DN 150
All products are designed according to the international standard ISO7183.
Inlet temperature: < 40 centidegree , Working pressure: < 10bar.
Dew point temperature: <  -40 centidegree , Loss air: <  15%

Contact us if you need more details on Regeneration Dryer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Regeneration Air Dryer、Dehumidifier. If these products fail to match your need, please contact us and we would like to provide relevant information.
